[AWS] ECS Container 접속

1. 준비 단계

• 로컬에 AWS의 Session Manager 플러그인 설치

참조 : https://docs.aws.amazon.com/ko_kr/systems-manager/latest/userguide/session-manager-working-with-install-plugin.html

AWS CLI의 Session Manager 플러그인 설치 - AWS Systems Manager

[root@ip-172-20-0-181 ec2-user]# sudo yum install -y https://s3.amazonaws.com/session-manager-downloads/plugin/latest/linux_64bit/session-manager-plugin.rpm

- 설치 확인
[root@ip-172-20-0-181 ec2-user]# session-manager-plugin

The Session Manager plugin was installed successfully. Use the AWS CLI to start a session.

2. ECS 설정

aws ecs update-service --cluster <cluster-name> --service <service-name> --enable-execute-command --profile <profile-name>

[root@ip-172-20-0-181 .aws]# aws ecs update-service --cluster ecs-test --service ecs-test-svc --enable-execute-command --profile ecr-user

• 위 명령어를 사용하여 "enableExecuteCommand" : true  부분이 true로 되어있는 지 확인 필요

3. ECS 접속

[root@ip-172-20-0-181 ~]# aws ecs execute-command --profile ecr-user --cluster ecs-test --task arn:aws:ecs:ap-northeast-2:859234351948:task/ecs-test/ccd1e9c68a064d288d32c2f3b7412a10 --container ecs-test --command "/bin/sh" --interactive

The Session Manager plugin was installed successfully. Use the AWS CLI to start a session.


Starting session with SessionId: ecs-execute-command-048cb4ea62cf87ca8

4. ERROR 모음

1)  An error occurred (TargetNotConnectedException) when calling the ExecuteCommand operation: The execute command failed due to an internal error. Try again later.

[root@ip-172-20-0-181 ~]# aws ecs execute-command --profile ecr-user --cluster ecs-test --task arn:aws:ecs:ap-northeast-2:859234351948:task/ecs-test/70948fbf3e244606b46819138172189e --container ecs-test --command "/bin/sh" --interactive

The Session Manager plugin was installed successfully. Use the AWS CLI to start a session.


An error occurred (TargetNotConnectedException) when calling the ExecuteCommand operation: The execute command failed due to an internal error. Try again later.

• IAM ▶ 정책 ▶ 정책 생성 ▶ JSON ▶ 아래 정책 복사하여 생성

{
	"Version": "2012-10-17",
	"Statement": [
		{
			"Effect": "Allow",
			"Action": [
				"ssmmessages:CreateControlChannel",
				"ssmmessages:CreateDataChannel",
				"ssmmessages:OpenControlChannel",
				"ssmmessages:OpenDataChannel"
			],
			"Resource": "*"
		}
	]
}

• IAM ▶ 역할 ▶ 원하는 태스크 정의에 들어가 있는 태스크 실행 역할 클릭 ▶ 방금 생성한 정책 추가 ▶ 태스크 삭제 후 재배포 ▶ 다시 접속 테스트

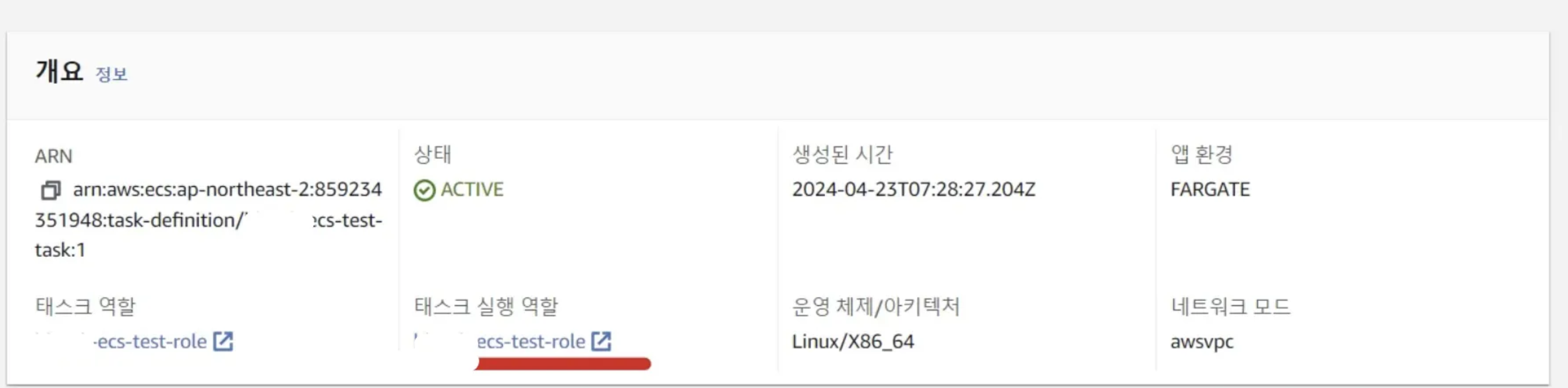

• 태스크 실행 역할 확인 방법 : ECS ▶ 태스크 정의 ▶ 원하는 태스크 정의 선택 ▶ 원하는 태스크 정의 : 개정 선택 ▶  태스크 실행 역할 확인

2) An error occurred (AccessDeniedException) when calling the UpdateService operation: User: arn:aws:iam::859234351948:user/hlpark-ecr-user is not authorized to perform: ecs:UpdateService on resource: arn:aws:ecs:ap-northeast-2:859234351948:service/hlpark-ecs-test/hlpark-ecs-test-svc because no identity-based policy allows the ecs:UpdateService action

[root@ip-172-20-0-181 .aws]# aws ecs update-service --cluster hlpark-ecs-test --service hlpark-ecs-test-svc --enable-execute-command --profile hlpark-ecr-user

An error occurred (AccessDeniedException) when calling the UpdateService operation: User: arn:aws:iam::859234351948:user/hlpark-ecr-user is not authorized to perform: ecs:UpdateService on resource: arn:aws:ecs:ap-northeast-2:859234351948:service/hlpark-ecs-test/hlpark-ecs-test-svc because no identity-based policy allows the ecs:UpdateService action

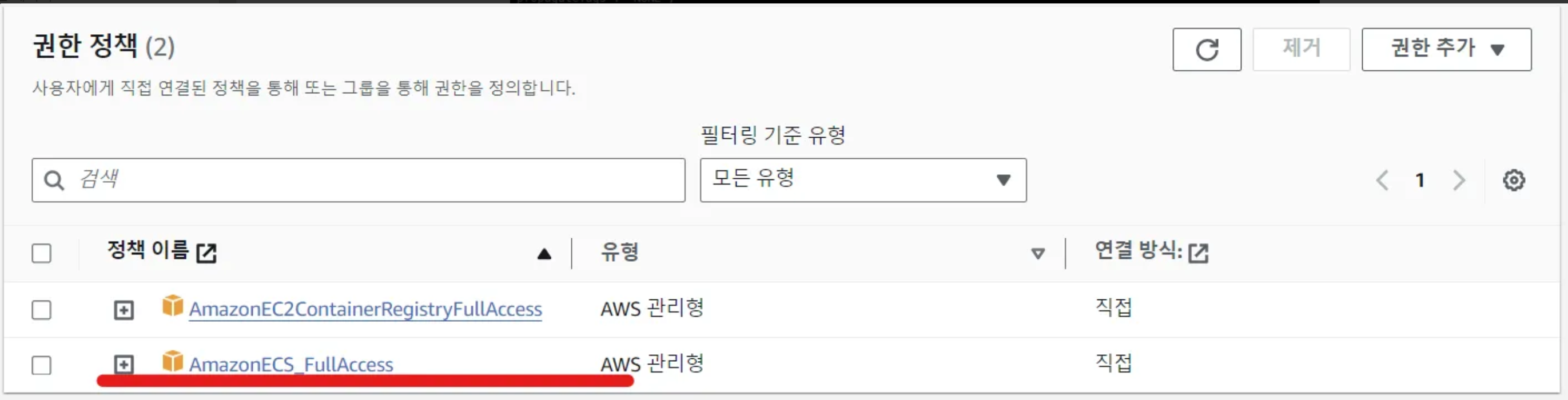

• IAM 권한 추가 필요
